Manual:Extension/PDFCreator/Custom cover sheets

To create a custom cover sheet with more than just the title and a background, you need to add some custom formatting to a PDF template. For this purpose, making the changes from page Special:PDF templates is usually not sufficient. In that case, you change the necessary formatting directly in the definition for your PDF template.

Simply follow the example below to get the following layout variation.

Example layout

Custom cover page

Important!

When you customize the cover sheet as described, you need to maintain it exclusively via the page MediaWiki:PDFCreator.

Changing the cover page from the page Special:PDF templates will overwrite your changes.

Copying an existing template

To create a PDF template with a custom cover sheet, we first copy an existing template. For the example we copy the StandardBookPDF template to a new template called StandardHandbookPDF.

To create a new PDF template from an existing one:

1. Go to the page Special:PDF_templates.
2. Copy the template StandardBookPDF.



   Copy a template

3. Enter a name for the new template.
4. Click Copy.

Customizing the template

From the page Special:PDF_templates click on the template name for your new template. StandardHandbookPDF. This brings up the page MediaWiki:PDFCreator.

To customize the cover sheet:

1. Select your PDF template. This brings up the PDFCreator page for your template.
2. Open the page in edit mode.
3. Switch to the tab Document preface.
4. Replace the default content with the following content:

   <div class="pdfcreator-intro">
       <div class="pdfcreator-intro-logo">{{{logo}}}</div>
       <div class="pdfcreator-intro-title">{{{book-title}}}
           <div class="pdfcreator-intro-subtitle">{{{book-subtitle}}}</div>
   	</div>

       <div class="pdfcreator-intro-text">
           <div>Adress line 1</div>
           <div>Adress line 2</div>
           <div>City</div>
           <div>Other contact info</div>
       </div>
   </div>


5. Switch to the tab Styles.
6. Append the following CSS rules to the end of the existing CSS styles.

   /*Custom cover sheet styles*/

   .pdfcreator-type-intro {
   	background-color: #3E5389; /*only visible if no cover-image is available */
   	background-position:center 1.5cm;
   	max-height:14cm;
       overflow:hidden;
   }

   .pdfcreator-intro-logo {
   	position: absolute;
   	padding: 0.3cm 1.75cm;
   	width: 21cm;
   	max-height: 2.6cm;
   	overflow: hidden;
   	background-color: #ffffff;
   }

   .pdfcreator-intro-title {
   	top: 15.5cm;
   	font-size: 32px;
   	color: #3E5389;
   	font-weight: 800;
   	line-height: 1.5em;
   }

   .pdfcreator-intro-subtitle {
       display:block;
   	font-size: 18px;
   	color: #3E5389;
   	font-weight: 600;
   	line-height: 1.3em;
   	margin-top:0.5cm;
   }

   .pdfcreator-intro-text {
       position:absolute;
   	font-size: 14px;
   	font-weight: 600;
   	line-height: 1.3em;
       top:25.5cm;
       left:1.75cm;
   	width: 17.5cm;
   }




   PDFCreator template page

Print a book with this template. There are two ways of applying the new template:

Adding it to the metadata of a book:

Book metadata

Selecting it from the Export dialog of a book page in Book print mode:

Export dialog on a wiki page that is part of a book

Cover image considerations

The PDFCreator is looking for a cover image in the following places:

• the bookshelf-image in the metadata of the book. If none exists:
• the default cover image set in the Config manager PDFCreator settings. If none exists

The cover image is only applied if the Document preface uses the wrapper class "pdf-creator-info":

<div class="pdfcreator-intro">
...
</div>

If no cover image exists, the template we just created shows a blue background color instead:

.pdfcreator-type-intro {
	background-color: #3E5389; /*only visible if no cover-image is available */
    ...
}

Title or book-title?

The template is created to print PDFs from books. It assumes that each book has a book-title set in the book's meta data. If no book-title exists, no title is printed on the cover page:

Book title and subtitle settings

​If you want to be flexible and use the PDF template also in Page export mode or for books that do not have a book-title defined, you need to create a separate copy of your PDF-template where you define {{{title}}} or {{PAGENAME}} instead of {{{book-title}}} in the Document preface tab, since there currently is no fallback-mechanism.

Variations

Removing the logo

If you do not want to show the wiki's logo at the top of the cover sheet, you can simply comment out the line that inserts the logo:

<div class="pdfcreator-intro">
    <!--<div class="pdfcreator-intro-logo">{{{logo}}}</div>-->
    <div class="pdfcreator-intro-title">{{{book-title}}}
        <div class="pdfcreator-intro-subtitle">{{{book-subtitle}}}</div>
	</div>

    <div class="pdfcreator-intro-text">
        <div>Adress line 1</div>
        <div>Adress line 2</div>
        <div>City</div>
        <div>Other contact info</div>
    </div>
</div>

More variations

•

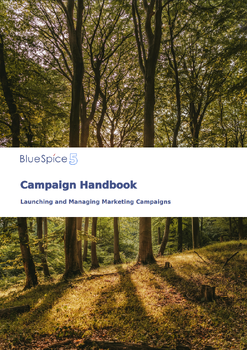

  Variation 2
